A world class stadium
80 000 cubic metres of concrete, 9000 tons of reinforcing steel and 8000 tons of structural steel were used to transform the FNB stadium into one of the most striking, impressive and well-equipped stadiums in the world. Hosting both the 2010 FIFA World Cup opening match and final, the 88 958 seater venue sits at the nexus of a dynamic transportation hub serving all the surrounding areas.

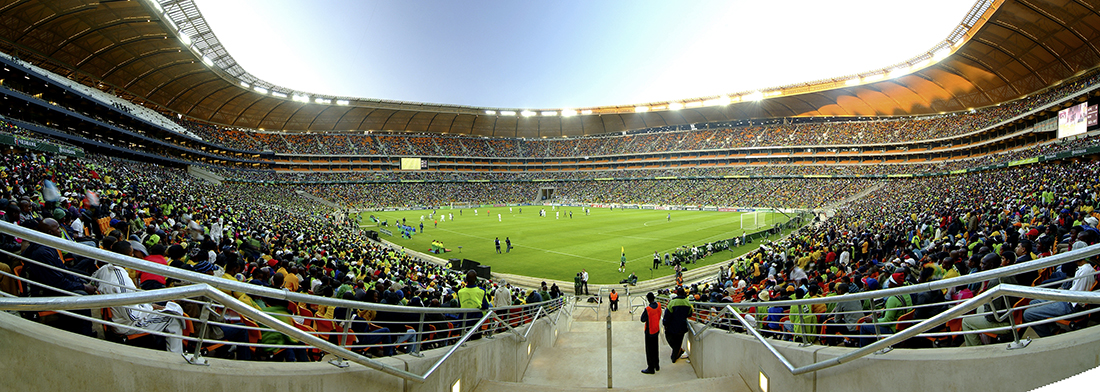

The stadium is made up of 3 tiers, lower embankment, upper embankment, two skybox or suite levels and the upper tier.

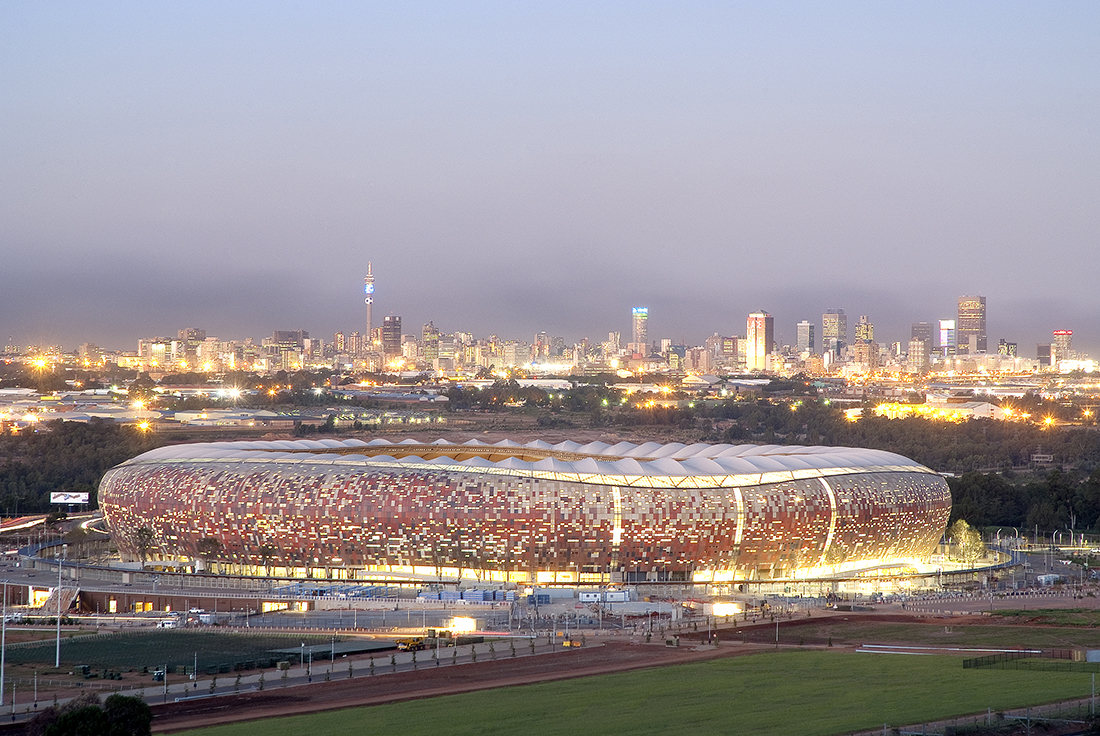

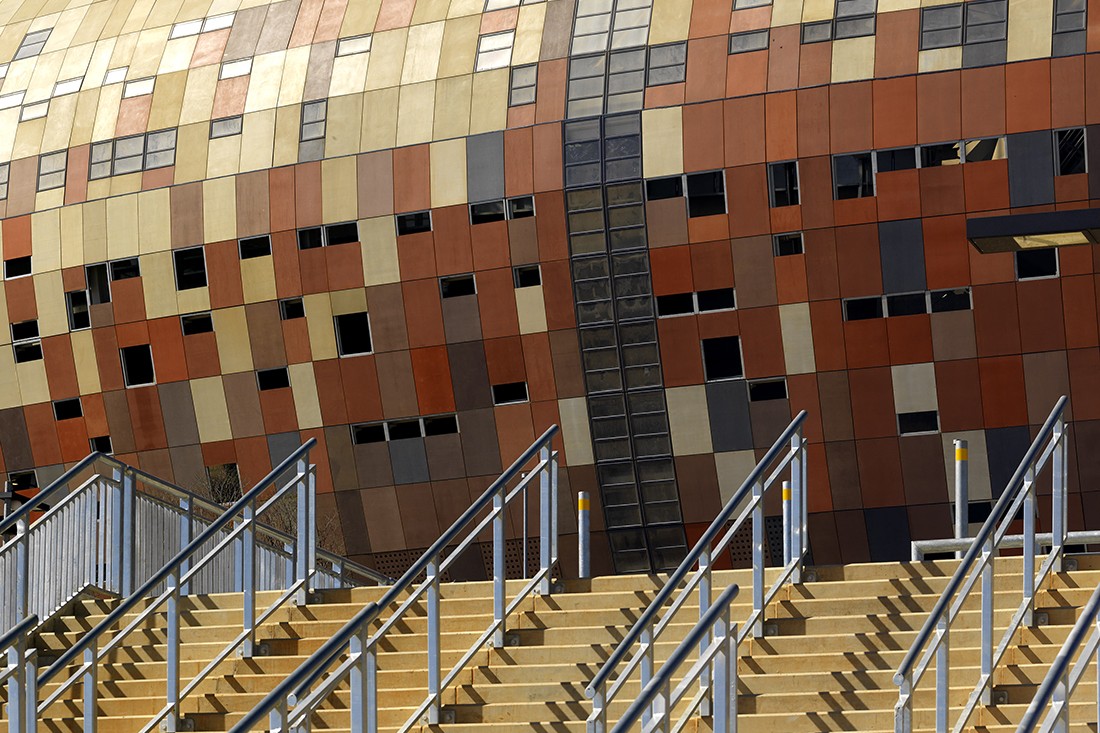

The calabash or African pot design represents a melting pot of cultures and sits in a depression as if it is being naturally fired. The pot’s façade is made up of laminated fibre reinforced concrete panels, referencing the shades and textures of the calabash and is punctured by open panels which come to life when the inside volumes are illuminated. Representing the road to the final and further entrenching the idea of inclusiveness, the façade has ten vertical lines that align geographically to the nine other 2010 stadia, as well as the Berlin stadium where the previous world cup came from. This captures the tradition of pattern making, which tells the story of the person making the pot or those that will use it.

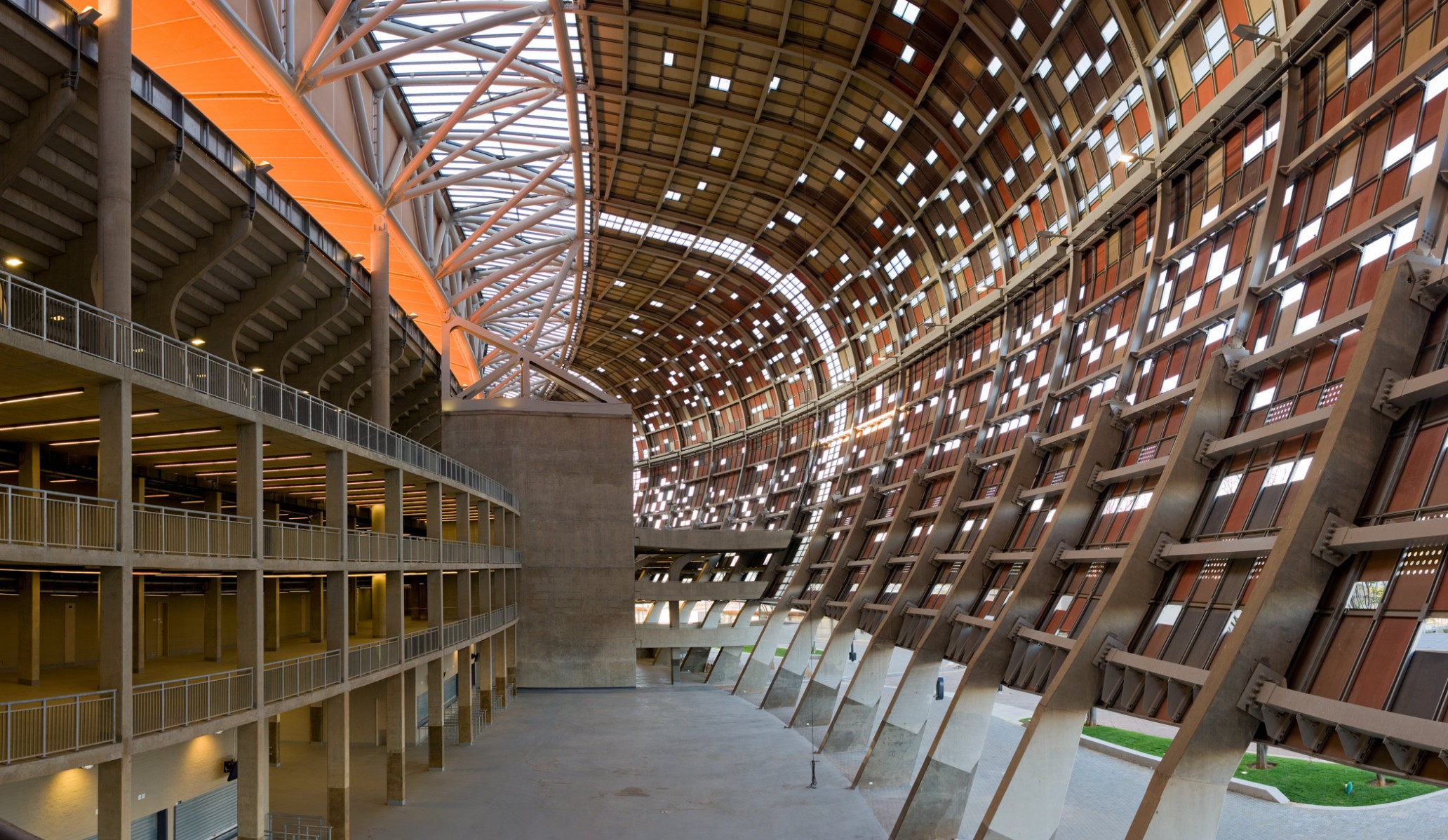

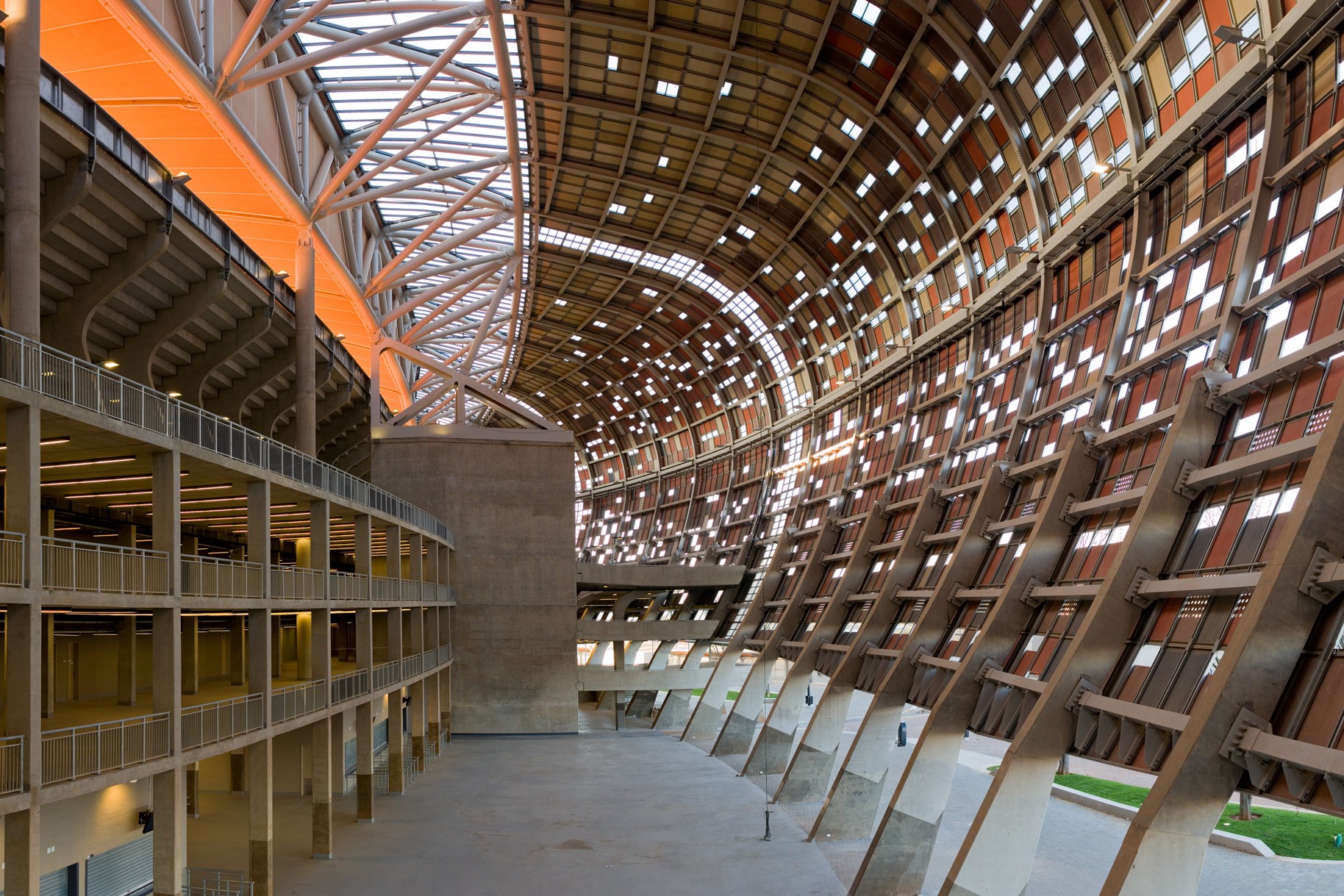

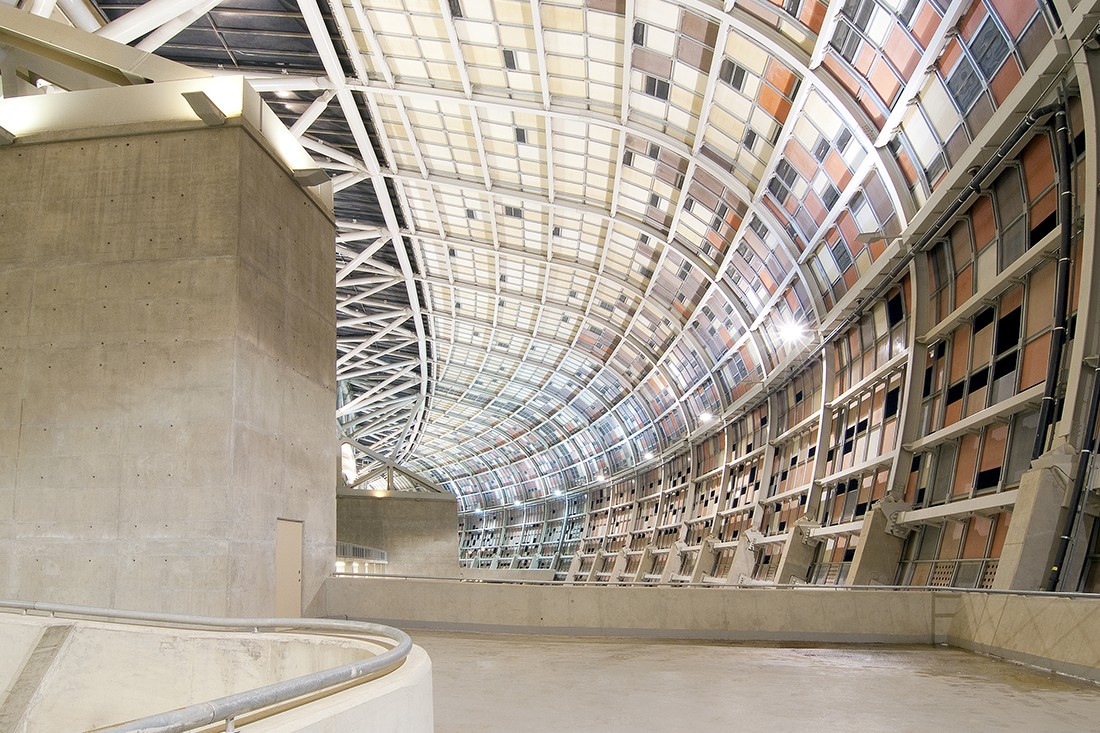

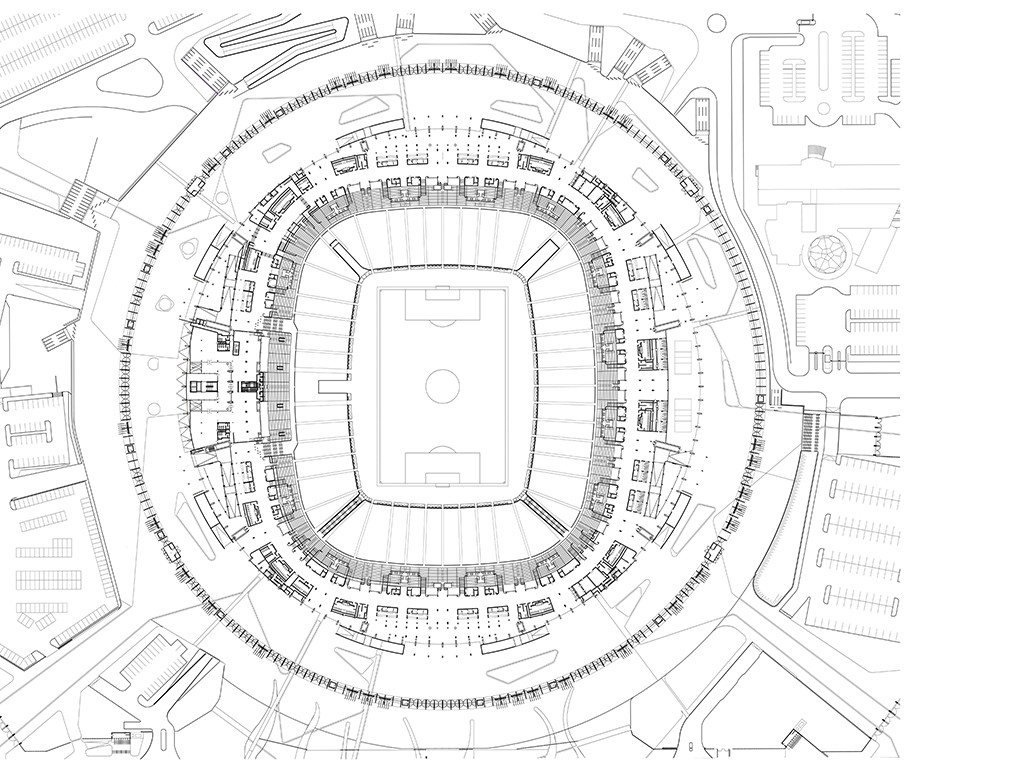

These lines continue onto the podium where the scores are featured and run through the orange seating bowl, like dark grey lines slicing through the Highveld sunset. Cut under the existing grandstand and designed as a sloping mine shaft, the players’ tunnel pays tribute to Joburg’s rich gold mining history. The concourses on all levels provide access all-round the stadium except for the VIP lounges, hospitality areas and stadium management offices, which are accessed via secure lobbies.

Appointment 2007
Client City of Johannesburg
Completion 2009
JV Architect Boogertman Urban Edge + Partners
Area 88 589 seats
Quantity Surveyor Llale & Company
Strucutral Engineer PD Naidoo & Associates /Schlaich Bergermann
Mechanical Engineer DTM Pty Ltd
Electrical Engineer Advoco
Landscape Architect Uys & White

2010

World Architecture Festival – Category Winner: Stadia

Construction World Awards – Category Winner: Professional Services

The South African Institution of Civil Engineers Awards – Category Winner:

Most Outstanding Civil Engineering Achievement

Loerie Awards – Grand Prix Winner and Gold

Award Winner in Communication Design: Three Dimensional & Environmental Design – Architecture and Interior Design

Leaf Awards – Overall Winner and Category Winner: Public Buildings

SAPOA Innovative Excellence Awards – Category Winner: Stadia

VISI Awards – Shortlisted in Category:

Best Designers in South Africa (Bob van Bebber and Piet Boer)

2009

Fulton Awards – Category Winner: Best Building Project – Concrete in Architecture

Fulton Awards – Commendation for Unique Design Aspect

SA Institute for Steel Construction Awards – Category Winner: Sports Stadia
